Front Air Cross Flow  MT-F 24
BRAND NEW FRONT AIR FLOW PAINT SPRAY BOOTH MADE IN THE USA

AIR FLOW DESCRIPTION:
Fresh air enters the booth through the front filtered doors and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment   and a supreme air flow for a great paint job.

BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.


Contact Us
OPTIONAL  (ADD-ON ITEMS):
Description

Only $13,999.00
INCLUDED:

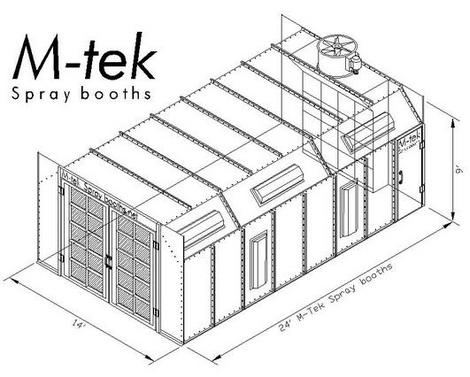

Paint Spray booth Model MT-F 24
Outside Dimension. 14'-4"Wide x 24'-4"Long x9'-2"High
Inside Dimension. 14'Wide x 22'-6"Long x 9'High
  • (1) Set of Drive in doors, opening Dim. 9'x9'
  • (1) Side access man door Dim. 3'x7'
  • (10) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (1) 30" Dia. Tubeaxial belt drive exhaust fan cfm's @ .250"  SP=13,180
  • (1) 3hp 3ph motor 208-230/460v. 60 hz
  • (1) Mark dywer manometer kit defines air flow pressure
  • (16) Exhaust filters w/ (32) exhaust filter grids
  • (20) Intake filter pads
  • (1)Hardware set for assembly; nuts & bolts, screws, door foam  seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
  • (1) Installation exploded view drawings booth elevations and  specifications.
  • Tubular steel frame doors for more durability and solid look
  • All components are UL approved


MT-F 21             14'-4"X21'-4"X9'-2"           30" 2hp 3ph         10
MT-F 24             14'-4"X24'-4"X9'-2"           30" 3hp 3ph         10 MT-F 27             14'-4"X27'-4"X9'-2"           30" 3hp 3ph         10 MT-F 30             14'-4"X30'-4"X9'-2"           30" 3hp 3ph         12

  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • 1 Phase Upgrade
  • Observation Windows On Entry Doors.
  • 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System

All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.

   Model           Dimension O.D.             Fan/Motor         Lights
                     Width x Length x height
