Paint Mixing Room
MT-PMR 1010
BRAND NEW PAINT MIXING ROOM MADE IN THE USA

DESCRIPTION:
Paint Mixing Rooms are perfect for paint mixing and matching. All mixing rooms are well lit and ventilated providing a safe environment  for the painter.

BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.


Contact Us
OPTIONAL  (ADD-ON ITEMS):
Description

Only $4,799.00
INCLUDED:

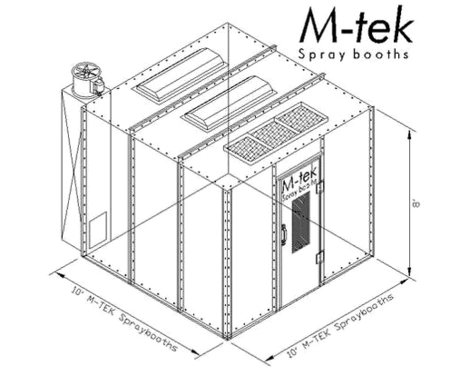

Paint Mixing Room Model MT-PMR 1010
Dimension 10'-4"Wide X 10'-4"Deep X 8'-2"High
  • (1) 12" Dia. Tubeaxial Exhaust Fan Belt drive  CFM's @ .250" SP=1561
  • (1) 1/3hp 1ph motor 115/230V. 50/60 hz
  • (1) Access Man door
  • (2) 4 Tube fluorescent T8 light fixture 120v. (bulbs not included)
  • (1) Exhaust Plenum with ventilation opening.
  • (3) Intake filter pads.
  • (1) Hardware set for assembly
  • (1) Installation exploded view drawings booth elevations and specifications.
  • All components are UL approved
MT-PMR 106    10'-4" X 6'-4" X 8'-2"            12" 1/3hp 1ph       1
  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • Observation Windows On Entry Doors.
  • 12" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System

All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.

   Model              Dimension O.D.               Fan/Motor     Lights
                     Width x Length x height
MT-PMR 1010  10'-4" X 10'-4" X 8'-2"          12" 1/3hp 1ph       2
MT-PMR 1012  10'-4" X 12'-4" X 8'-2"          12" 1/3hp 1ph       2
MT-PMR 1015  10'-4" X 15'-4" X 8'-2"          12" 1/3hp 1ph       3
