Truck Front Air Flow
BRAND NEW TRUCK FRONT AIR FLOW PAINT SPRAY BOOTH MADE IN THE USA
AIR FLOW DESCRIPTION:
Fresh air enters the booth through the front filtered doors and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):

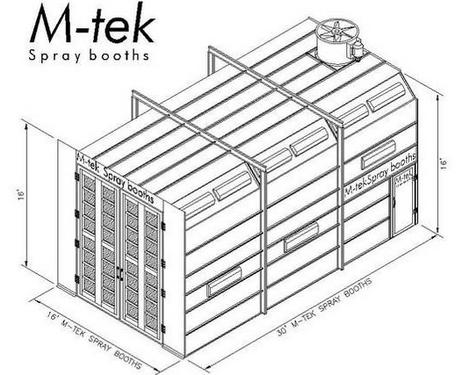

Paint Spray booth Model MT-TF 3000.
Outside dim. 17'Wide x 30'-4"Long x 16'-6"High
Inside dim. 16'Wide x 28'Long x 16'High
- (1) Set of Drive in doors, opening Dim. 11'x15'
- (1) Side access man door Dim. 3'x7'
- (18) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (1) 42" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=23,505
- (1) 5hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (36) Exhaust filters w/ (72) exhaust filter grids
- (1)Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
- (1) Installation exploded view drawings booth elevations and specifications.
- Tubular steel frame doors for more durability and solid look
- All components are UL approved
MT-TF 3000 17'X30'-4"X16'-6" 42" 5hp 3ph 18
MT-TF 4000 17'X40'-4"X16'-6" 42" 7.5hp 3ph 24
MT-TF 5000 17'X50'-4"X16'-6" 42" 7.5hp 3ph 30
MT-TF 6000 17'X60'-4"X16'-6" 42" 7.5hp 3ph 36
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 42" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
