Heated Semi-Down Prep-Station
BRAND NEW HEATED SEMI-DOWN DRAFT PREP-STATION MADE IN THE USA
AIR FLOW DESCRIPTION:
Fresh air enters the booth through the top front intake plenum and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Prep-Station Model MT-PS 20.
W/ 400,000 BTU'S Heating Unit

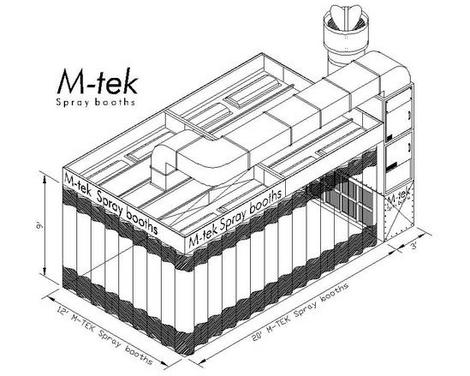

Outside dim. 12'-4"Wide x 23'-4"Long x 11'-2"High
Inside dim. 12'Wide x 20'Long x 9'High
- 400,000 BTU'S Heating unit. Variable Frequency Drives, Natural gas Direct-Fired pre-wired Burner, Inlet Duct work into cabin, and (1) 3hp 3ph motor 208-230/460v.
- Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
- (8) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (1) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180
- (1) 3hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (12) Exhaust filters w/ (24) exhaust filter grids
- (1)Hardware set for assembly; nuts & bolts and screws
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-PS 20 12'-4"X23'-4"X11'-2" 30" 3hp 3ph 8
MT-PS 24 12'-4"X27'-4"X11'-2" 30" 3hp 3ph 8 MT-PS 27 12'-4"X30'-4"X11'-2" 30" 3hp 3ph 10 MT-PS 30 12'-4"X33'-4"X11'-2" 34" 3hp 3ph 12
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
