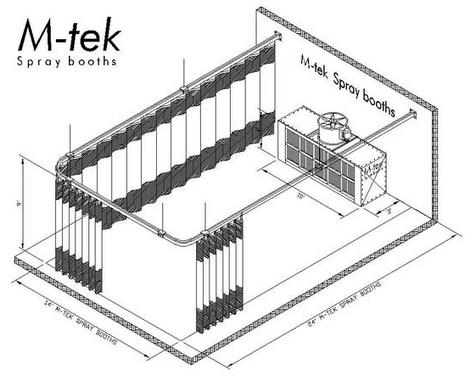

Exhaust Bench w/ Curtains
BRAND NEW EXHAUST BENCH BOOTH W/ 3 SIDED CURTAINS MADE IN THE USA
AIR FLOW DESCRIPTION:
Exhaust bench booth is perfect for sanding, limited priming and painting providing a safe environment for the painter.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Exhaust Bench Booth Model MT-BC10
Exhaust Bench Dimension 10'Wide X 3'Deep X 4'High
Work Area Dimension 12'wide X 21'long
- (3) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
- (1) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=9,850
- (1) 2hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (10) Exhaust filters w/ (20) exhaust filter grids
- (1)Hardware set for assembly
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-BC10 12' X 24' X 9' 30" 3hp 3ph N/A
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
MT-BC12 14' X 24' X 9' 30" 3hp 3ph N/A
