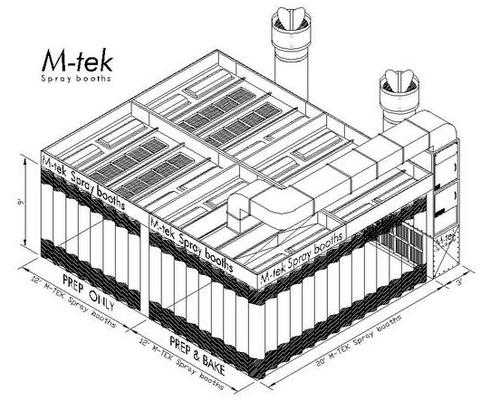

Semi-Down Dual Prep-Station
BRAND NEW SEMI-DOWN DRAFT DUAL PREP-STATION MADE IN THE USA
AIR FLOW DESCRIPTION:
Fresh air enters the booth through the top intake plenum and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Prep-Station Model MT-PS 200
W/ (1) 400,000 BTU'S Heating Unit.
Outside dim. 24'-4"Wide x 23'-4"Long x 11'-2"High
Inside dim. (2)12'Wx20'L work bays
- (1)400,000 BTU'S Heating unit. Variable Frequency Drives, Natural gas Direct-Fired pre-wired Burner, Inlet Duct work into cabin, and (1) 3hp 3ph motor 208-230/460v.
- (4) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
- (16) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (2) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180 x2 = 26,360
- (2) 3hp 3ph motor 208-230/460v. 60 hz
- (2) Mark dywer manometer kit defines air flow pressure
- (24) Exhaust filters w/ (24) exhaust filter grids
- (1)Hardware set for assembly; nuts & bolts and screws
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-PS 200 24'-4"X23'-4"X11'-2" 2-30" 3hp 3ph 16
MT-PS 240 24'-4"X27'-4"X11'-2" 2-30" 3hp 3ph 16 MT-PS 270 24'-4"X30'-4"X11'-2" 2-30" 3hp 3ph 20 MT-PS 300 24'-4"X33'-4"X11'-2" 2-34" 3hp 3ph 24
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- 30" Dia. Intake fan package
- 1,000,000 BTU'S LowNOX Heating unit
- 1,000,000 BTU'S Heating unit
- 400,000 BTU'S Heating unit
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
