Truck Semi-Down Draft
MT-TRS 5000
BRAND NEW TRUCK REVERSE SEMI DOWN DRAFT PAINT SPRAY BOOTH MADE IN THE USA

AIR FLOW DESCRIPTION:
Fresh air enters the booth through the rear top intake plenum and travels across the cabin evenly into the front cornered dual exhaust plenums providing a safe environment and a supreme air flow for a great paint job.

BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.


Contact Us
OPTIONAL  (ADD-ON ITEMS):
Description

Only $42,999.00
INCLUDED:
Paint Spray booth Model MT-TRS 5000

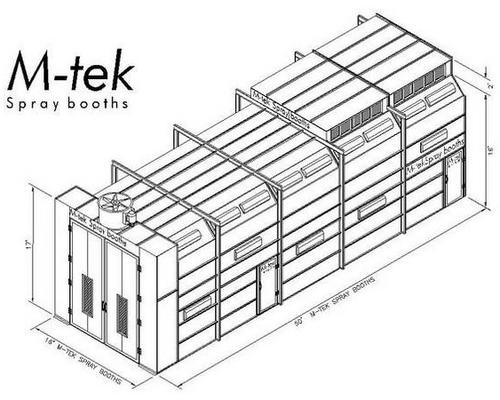

Outside dim. 17'Wide x 50'-4"Long x 18'-6"High
Inside dim. 16'Wide x 50'Long x 16'High
  • (1) Set of Drive in doors, opening Dim. 11'x15'
  • (2) Side access man door Dim. 3'x7'
  • (28) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (1) 42" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=27,610
  • (1) 7.5hp 3ph motor 208-230/460v. 60 hz
  • (1) Mark dywer manometer kit defines air flow pressure
  • (36) Exhaust filters w/ (72) exhaust filter grids
  • (40) Intake filter pads
  • (1)Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
  • (1) Installation exploded view drawings booth elevations and specifications.
  • Tubular steel frame doors for more durability and solid look
  • All components are UL approved


MT-TRS 3000    17'X30'-4"X18'-6"           42" 5hp 3ph            16
​MT-TRS 4000    17'X40'-4"X18'-6"           42" 7.5hp 3ph         22
MT-TRS 5000    17'X50'-4"X18'-6"           42" 7.5hp 3ph         28
​MT-TRS 6000    17'X60'-4"X18'-6"           42" 7.5hp 3ph         34

All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.

  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • 1 Phase Upgrade
  • Observation Windows On Entry Doors.
  • 42" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System
  • 42" Dia. Intake fan package
  • 1,000,000 BTU'S LowNOX Heating unit
  • 2,000,000 BTU'S Heating unit
  • Drive-thru kit. 2nd set of Drive in doors opening 11x15
   Model              Dimension O.D.           Fan/Motor        Lights
                     Width x Length x height
