Truck Semi-Down Draft
BRAND NEW TRUCK REVERSE SEMI DOWN DRAFT PAINT SPRAY BOOTH MADE IN THE USA
AIR FLOW DESCRIPTION:
Fresh air enters the booth through the rear top intake plenum and travels across the cabin evenly into the front cornered dual exhaust plenums providing a safe environment and a supreme air flow for a great paint job.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):

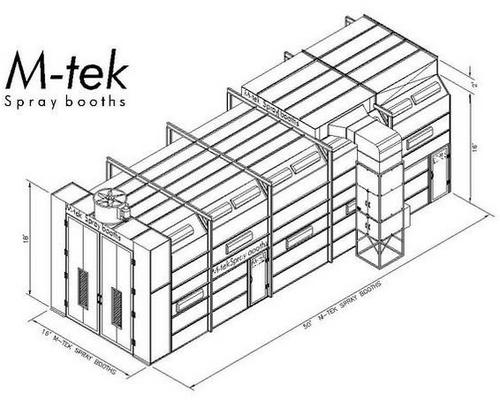

Paint Spray booth Model MT-TRS 5000
W/ 2,000,000 BTU AMU
Outside dim. 17'Wide x 50'-4"Long x 18'-6"High
Inside dim. 16'Wide x 50'Long x 16'High
- 2,000,000 BTU'S Heating unit. Variable Frequency Drives, Natural gas Direct-Fired pre-wired Burner, Inlet Duct work into cabin, and (1) 7.5hp 3ph motor 208-230/460v
- (1) Set of Drive in doors, opening Dim. 11'x15'
- (2) Side access man door Dim. 3'x7'
- (28) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (1) 42" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=27,610
- (1) 7.5hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (36) Exhaust filters w/ (72) exhaust filter grids
- (1)Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
- (1) Installation exploded view drawings booth elevations and specifications.
- Tubular steel frame doors for more durability and solid look
- All components are UL approved
MT-TRS 3000 17'X30'-4"X18'-6" 42" 5hp 3ph 16
MT-TRS 4000 17'X40'-4"X18'-6" 42" 7.5hp 3ph 22
MT-TRS 5000 17'X50'-4"X18'-6" 42" 7.5hp 3ph 28
MT-TRS 6000 17'X60'-4"X18'-6" 42" 7.5hp 3ph 34
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 42" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- 42" Dia. Intake fan package
- 1,000,000 BTU'S LowNOX Heating unit
- Drive-thru kit. 2nd set of Drive in doors opening 11x15
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
