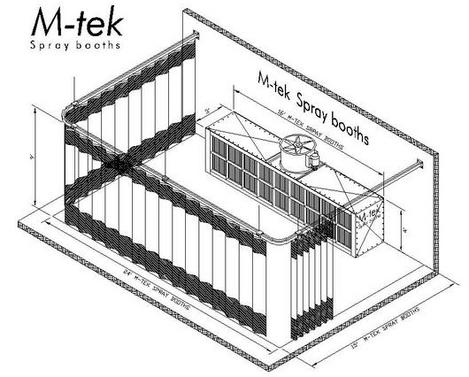

Side Exhaust Bench w/ Curtains
BRAND NEW SIDE EXHAUST BENCH BOOTH W/ 3 SIDED CURTAINS
MADE IN THE USA
AIR FLOW DESCRIPTION:
Exhaust bench booth is perfect for sanding, limited priming and painting providing a safe environment for the painter.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Exhaust Bench Booth Model MT-SBC16
Exhaust Bench Dim. 16'Wide X 3'Deep X 4'High
Work Area Dim. 12'wide X 24'long
- (3) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
- (1) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180
- (1) 3hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (18) Exhaust filters w/ (36) exhaust filter grids
- (1) Hardware set for assembly
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-SBC16 15' X 24' X 9' 30" 3hp 3ph N/A
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
MT-SBC18 17' X 24' X 9' 30" 3hp 3ph N/A
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
