BRAND NEW SIDE-DOWN DRAFT PREP-STATION MADE IN THE USA
AIR FLOW DESCRIPTION:
Fresh air enters the booth through the top intake plenum and travels downwards across the cabin evenly into the side bottom exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):

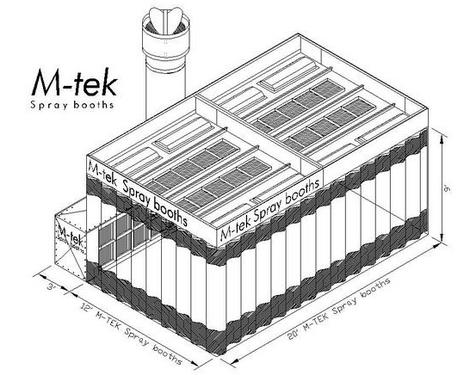

Prep-Station Model MT-PSD 20.
Outside dim. 15'-4"Wide x 20'-4"Long x 11'-2"High
Inside dim. 12'Wide x 20'Long x 9'High
- (3) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
- (8) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (1) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180
- (1) 3hp 3ph motor 208-230/460v. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (20) Exhaust filters w/ (40) exhaust filter grids
- (1)Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-PSD 20 15'-4"X20'-4"X11'-2" 30" 3hp 3ph 8
MT-PSD 24 15'-4"X24'-4"X11'-2" 30" 3hp 3ph 8 MT-PSD 27 15'-4"X27'-4"X11'-2" 30" 3hp 3ph 10 MT-PSD 30 15'-4"X30'-4"X11'-2" 34" 3hp 3ph 12
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- 30" Dia. Intake fan package
- 1,000,000 BTU'S LowNOX Heating unit
- 1,000,000 BTU'S Heating unit
- 400,000 BTU'S Heating unit
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
