Open Face Spray booth
MT-OF 888
BRAND NEW OPEN FACE SPRAY BOOTH MADE IN THE USA

DESCRIPTION:
Open Face Spray booths are perfect for woodworking and industrial finishing, providing a safe environment  for the painter.

BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.


Contact Us
OPTIONAL  (ADD-ON ITEMS):
Item No.                  Description

Only $3,399.00
  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • 1 Phase Upgrade
  • Observation Windows On Entry Doors.
  • 24" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System

All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.

INCLUDED:

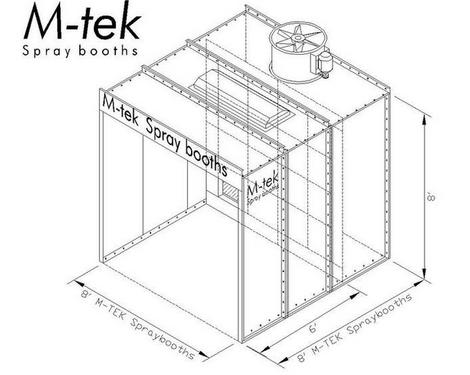

Paint Spray booth Model MT-OF 888
Outside Dim. 8'-4"Wide X 8'-4"Deep X 8'-2"High
Inside Dim. 8'Wide X 6'Deep X 8'High
  • (1) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (1) 24" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=8,573
  • (1) 2hp 3ph motor 208-230/460V. 60 hz
  • (1) Mark dywer manometer kit defines air flow pressure
  • (16)Exhaust filters w/ (32) exhaust filter grids
  • (1) Hardware set for assembly; nuts & bolts, screws.
  • (1) Installation exploded view drawings booth elevations and specifications.
  • All components are UL approved.


   Model              Dimension O.D.           Fan/Motor    Lights
                     Width x Length x Height
MT-OF 868
MT-OF 888
MT-OF 8128
MT-OF 8610
MT-OF 8810
MT-OF 81210

8'-4"' X 6'-4" X 8'-2"
8'-4" X 8'-4" X 8'-2"
8'-4" X 12'-4" X 8'-2"
8'-4" X 6'-4" X 10'-2"
8'-4" X 8'-4" X 10'-2"
8'-4" X 12'-4" X 10'-2"

24" 2hp 3ph
​24" 2hp 3ph
24" 2hp 3ph
30" 2hp 3ph
30" 2hp 3ph
30" 2hp 3ph
1
1
2
1
1
2
