Open Face Spray booth
MT-OF 2498
BRAND NEW OPEN FACE SPRAY BOOTH MADE IN THE USA
DESCRIPTION:
Open Face Spray booths are perfect for woodworking and industrial finishing, providing a safe environment for the painter.
BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Description
Only $11,999.00
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- 1 Phase Upgrade
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- Interlock Combo Kit
- Fire Suppression System
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
INCLUDED:

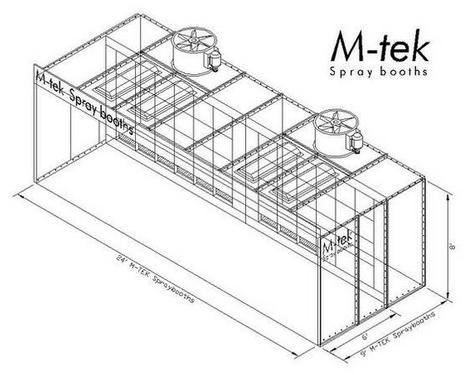

Paint Spray booth Model MT-OF 2498.
Outside Dim. 24'-4"Wide X 9'-4"Deep X 8'-2"High
Inside Dim. 24'Wide X 6'Deep X 8'High
- (4) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (2) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=11,180 x 2 = 22,360
- (2) 2hp 3ph motor 208-230/460V. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (48) Exhaust filters w/ (96) exhaust filter grids
- (1) Hardware set for assembly; nuts & bolts, screws.
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved.
Model Dimension O.D. Fan/Motor Lights
Width x Length x Height
MT-OF 2468
MT-OF 2498
MT-OF 24128
MT-OF 24610
MT-OF 24910
MT-OF 241210
24'-4"' X 6'-4" X 8'-2"
24'-4" X 9'-4" X 8'-2"
24'-4" X 12'-4" X 8'-2"
24'-4" X 6'-4" X 10'-2"
24'-4" X 9'-4" X 10'-2"
24'-4" X 12'-4" X 10'-2"
(2)30" 2hp 3ph
(2)30" 2hp 3ph
(2)30" 2hp 3ph
(2)30" 3hp 3ph
(2)30" 3hp 3ph
(2)30" 3hp 3ph
N/A
4
4
N/A
4
4
