Semi-Down Draft MT-FS 27

BRAND NEW SEMI-DOWN DRAFT PAINT SPRAY BOOTH MADE IN THE USA

AIR FLOW DESCRIPTION:

Fresh air enters the booth through the front top intake plenum and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.

BOOTH CONSTRUCTION:

All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.

OPTIONAL (ADD-ON ITEMS):

Description

INCLUDED:

Paint Spray booth Model MT-FS 27.

Dimensions

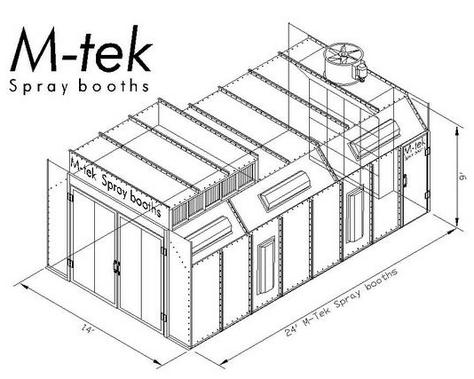

Outside Dim. 14'-4"Wide x 27'-4"Long x 11'-2"High

Inside Dim. 14'Wide x 25'-6"Long x 9'High

Entry Doors

Tubular steel frame doors for durability.

(1) Set of Drive in doors, opening Dim. 9'x9'

(1) Side access man door Dim. 3'x7'

Observation Windows

(1) Set of three observation windows one on Each door.

Lighting

(10) 4 tube fluorescent T8 light fixtures 120v.

(bulbs not included)

Exhaust Fan

(1) 30" Dia. Tubeaxial Belt Drive Exhaust Fan Aluminum Blades CFM's @ .250" SP=13,180

(1) 3hp 3ph motor 208-230/460v. 60 hz

Pre-fab Electrical Control kit

Motor control with on/off switch and overloads

12' Exhaust Duct kit

30" Dia. 12 Ft. Exhaust Duct Kit, 3 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.

Hardware

(1) Mark Dywer manometer kit defines air flow pressure

(16) Exhaust filters w/ (32) exhaust filter grids

(20) Intake filter pads

(1) Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.

(1) Installation exploded view drawings booth elevations and specifications.

All components are UL approved

MT-FS 21 14'-4"X21'-4"X11'-2" 30" 2hp 3ph 10

MT-FS 24 14'-4"X24'-4"X11'-2" 30" 3hp 3ph 10 MT-FS 27 14'-4"X27'-4"X11'-2" 30" 3hp 3ph 10 MT-FS 30 14'-4"X30'-4"X11'-2" 30" 3hp 3ph 12

Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
