Table-Top Spray booth
BRAND NEW TABLE-TOP SPRAY BOOTH MADE IN THE USA
Table-top spray booths is perfect for small parts or hobby oriented jobs that required spray painting providing a safe environment for the painter.
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):

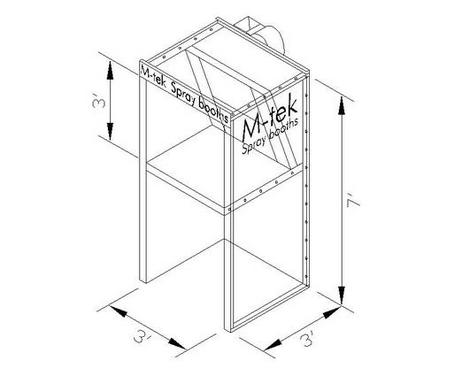

Table-Top Spray Booth Model MT-OF 3
Dimension 3'Wide X 3'Deep X 7'High
- (1) Forward Curve Direct Drive exhaust Blower CFM's @ .200" SP=1150
- (1) 1/3hp 1ph motor 115/230V. 50/60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (2) exhaust filters w/ (4) exhaust filter grids
- (1)hardware set for assembly
- (1) installation exploded view drawings booth elevations and specifications.
- All components are UL approved
MT-OF 3 3' X 3' X 7' 8" 1/3hp 1ph N/A
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 8" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
MT-OF 4 4' X 3' X 7' 8" 1/3hp 1ph N/A
MT-OF 44 4' X 4' X 7' 8" 1/3hp 1ph N/A
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
